IBECO Mobile Pump Well – efficient, safe, and innovative drainage solution
The patented mobile pump well from IBECO revolutionizes excavation work. With a unique design that rapidly drains the trench and protects the pump, it creates a dry, stable, and safe working environment — without time-consuming manual steps. Developed by field expert Rickard Wennberg in collaboration with IBECO.
Advantages
- No personnel need to work in water-filled or unstable excavations, reducing the risk of collapse.
- Easy to position at the correct depth using machinery – smaller excavations, fewer transports, and faster processes.
- The pump is protected by the perforated pipe and gravel, reducing wear, clogging, and downtime.
- Provides longer equipment lifespan, reduces the need for vacuum trucks, and is suitable for all ground conditions.
Areas of application
- Ground and water infrastructure work
- Excavations with high groundwater levels
- Temporary or permanent dewatering solutions
- Construction, municipal, and industrial projects
|
Art.nr
|
Article
|
Description
|
Description
|
Varukorg
|
|---|---|---|---|---|
|
IBPBR-18
|
IBECO Mobile Pump Well
|
Height 1,8m, S60 machine coupling
|
Recommended pump SPT 750W
|
|
|
IBPB-INR
|
IBECO Mobile Pump Well inner pipe
|
Recommended pump SPT 750W
|
|
|
|
IBPB-FL
|
IBECO Mobile Pump Well extension pipe
|
With coupling
|
Recommended pump SPT 750W
|
|
|
IBPBR-Komplett
|
IBECO Mobile Pump Well, complete
|
Height 1,8m, S60 machine coupling
|
Complete with pump, extension pipe, and SPT Touch
|
|

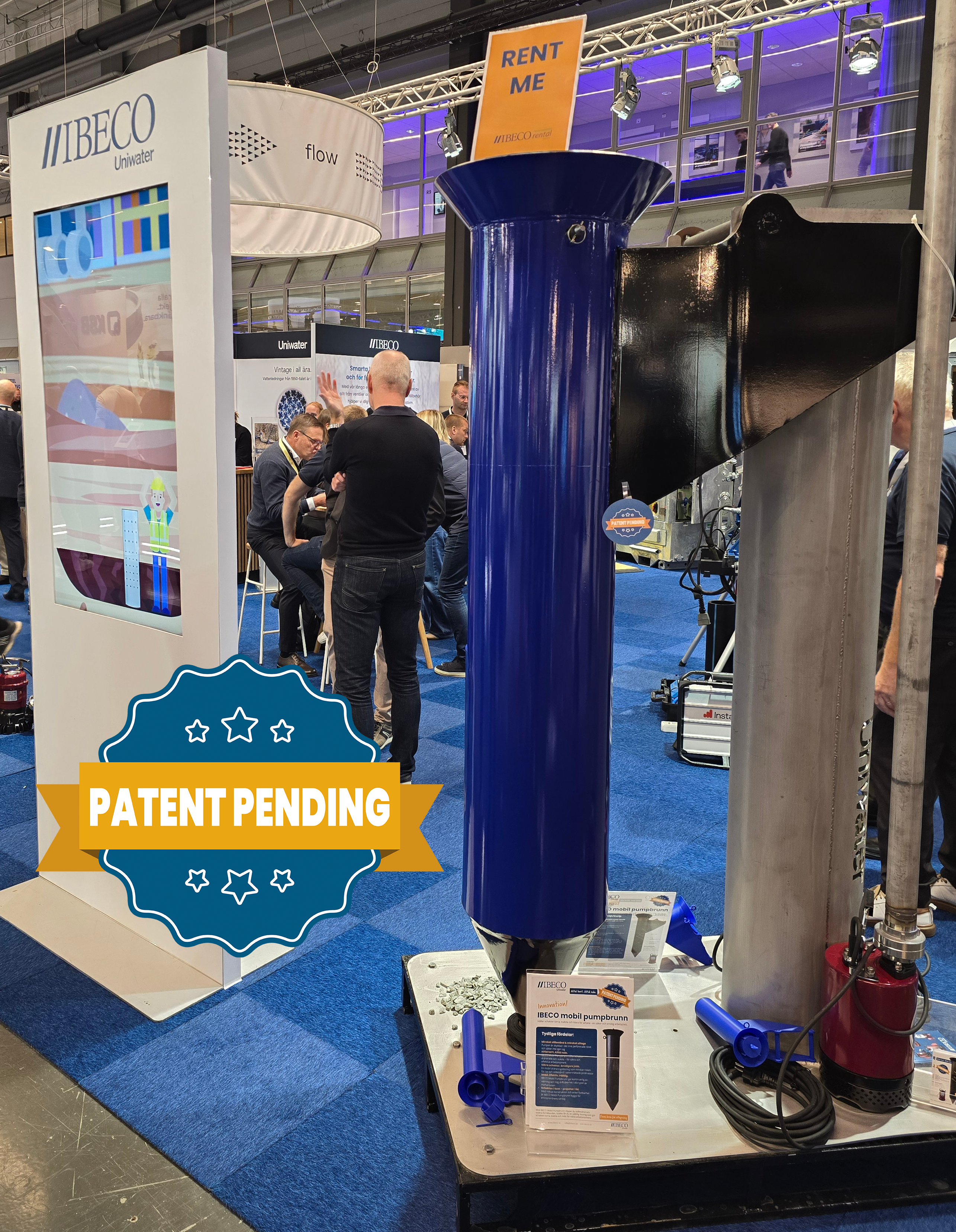

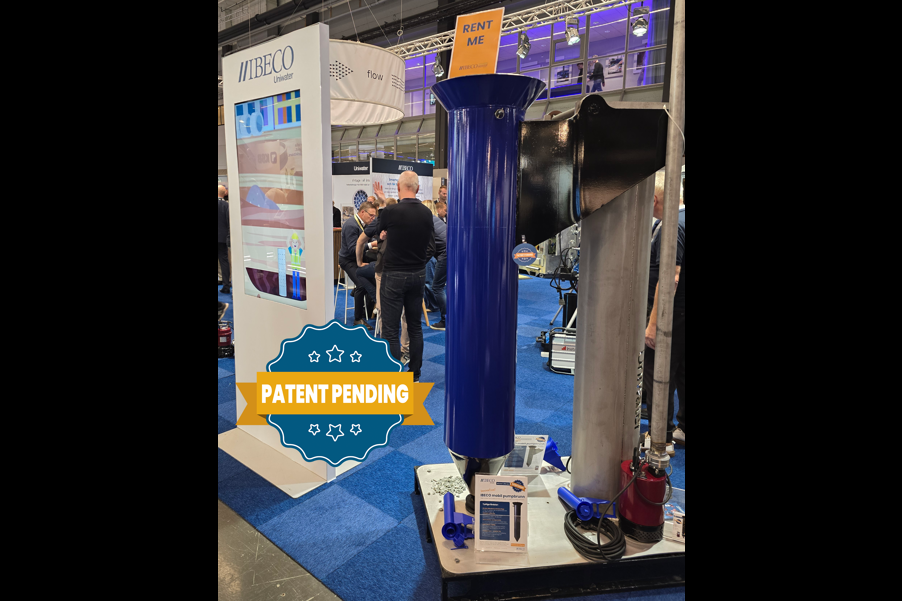

The mobile pump well consists of two pipes: an outer mounting pipe with a standardized S60 machine coupling, and an inner perforated pipe for drainage.
The space between them is filled with gravel, and the well is pressed or excavated down to the desired level.

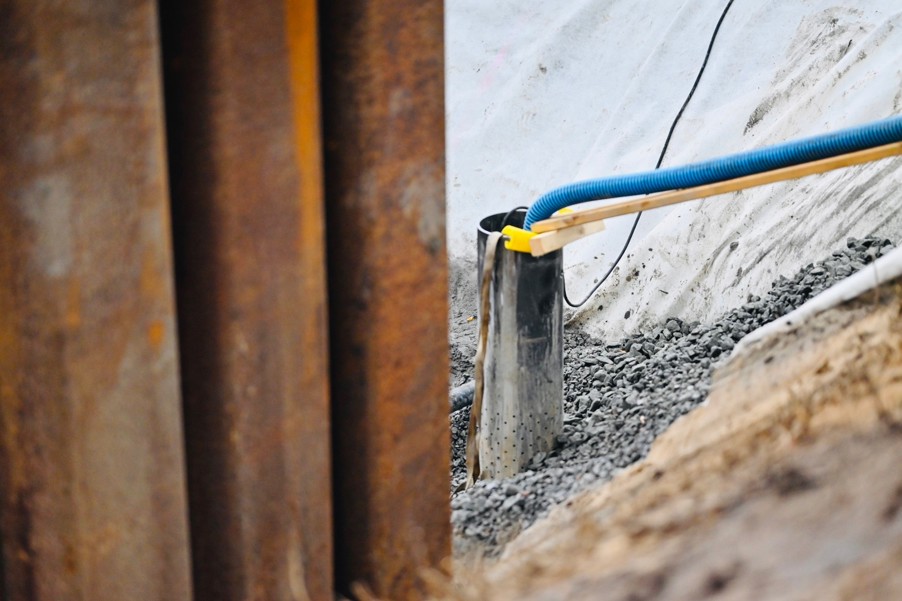

When the outer pipe is lifted, a stable, drained well remains—ready for lowering a submersible pump or a suction hose.
The result is efficient water removal and a dry excavation where work can quickly continue.

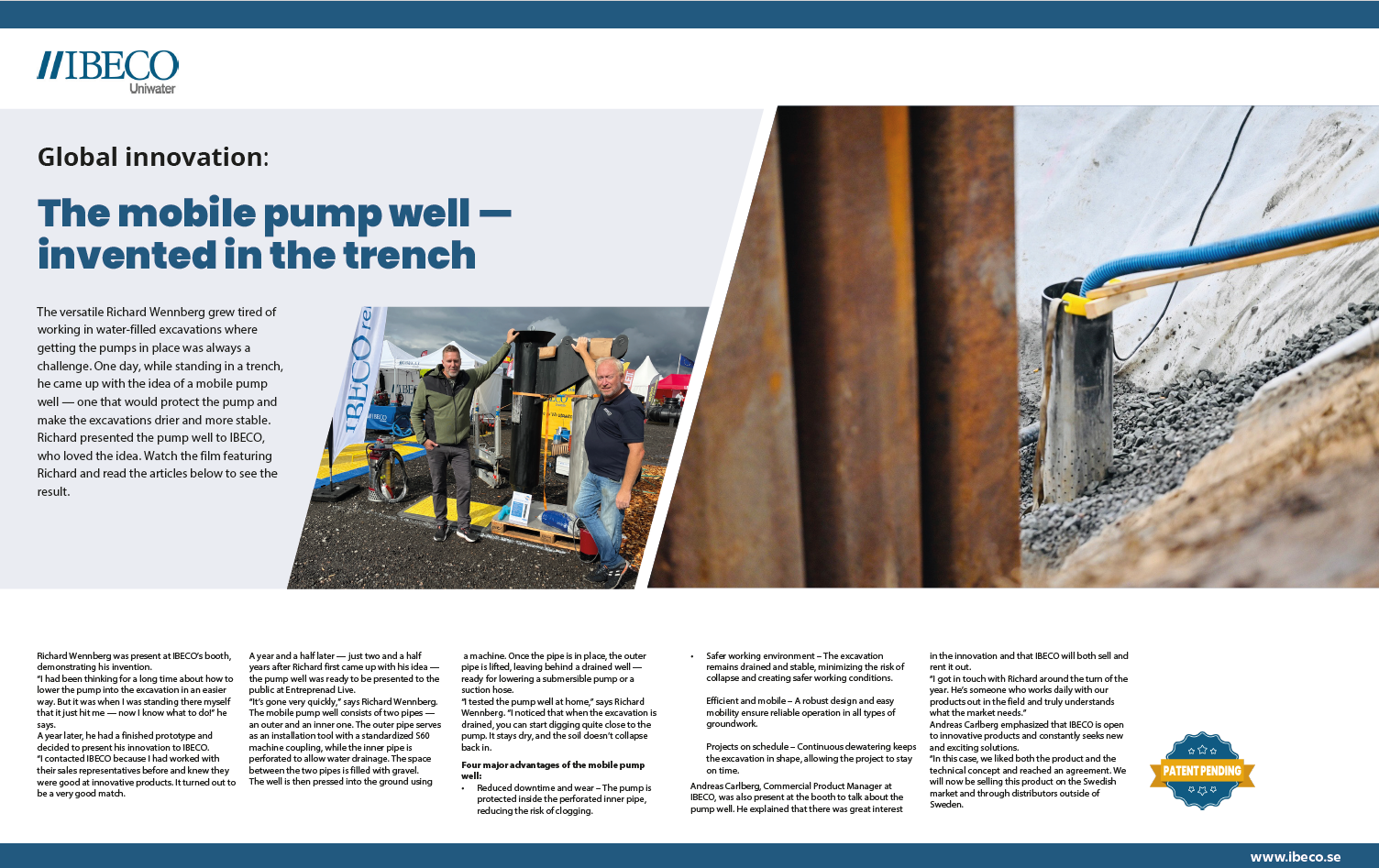

The versatile Richard Wennberg grew tired of working in water-filled excavations where getting the pumps in place was always a challenge. One day, while standing in a trench, he came up with the idea of a mobile pump well — one that would protect the pump and make the excavations drier and more stable. Richard presented the pump well to IBECO, who loved the idea. Watch the film featuring Richard and read the articles below to see the result.
