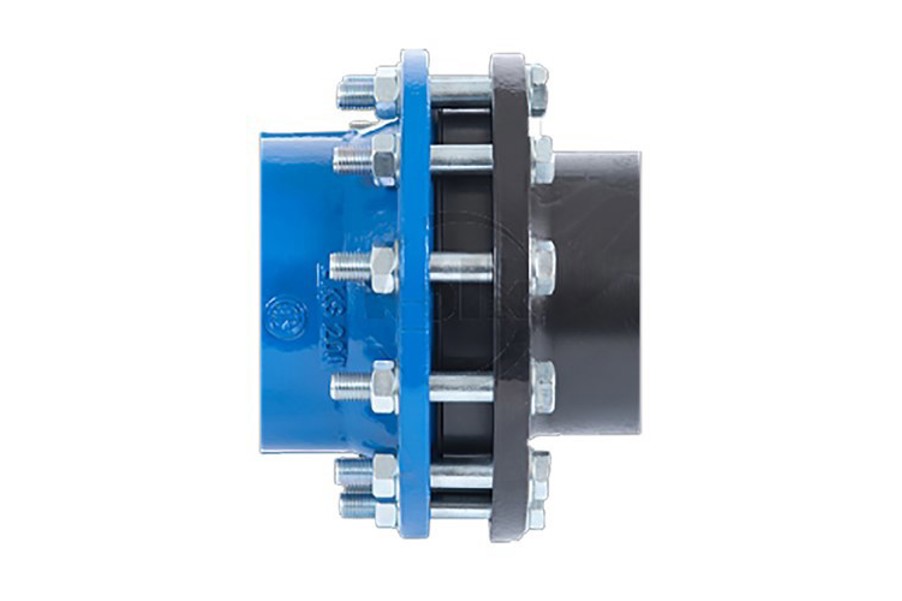

IBECO bultsats lång syrafast
Dokument och länkar
IBECO Bultsats lång, bult+bricka A2/mutter A4
Inkl flänspackning med stålinlägg RSG-TW
|
Art.nrEPDM
|
RSK nr.EPDM
|
Art.nrNBR
|
RSK nr.NBR
|

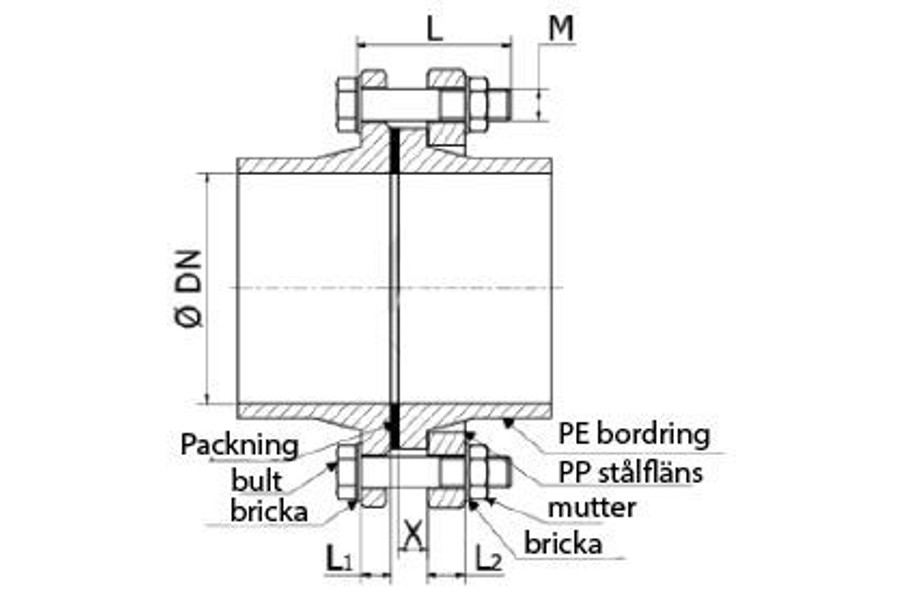

Fläns-borrning
|
DN
|
Lmm
|
Xmm
|
L1mm
|
L2mm
|
Bultar
|
Varukorg
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSRF050-16LE
|
240 45 44
|
BSRF050-16LN
|
2404572
|
PN10/16
|
50
|
80
|
14
|
19
|
20
|
4 x M16
|
|
|
BSRF065-16LE
|
240 45 45
|
BSRF065-16LN
|
2404573
|
PN10/16
|
65
|
90
|
16
|
19
|
20
|
4 x M16
|
|
|
BSRF080-16LE
|
240 45 46
|
BSRF080-16LN
|
2404574
|
PN10/16
|
80
|
90
|
17
|
19
|
20
|
4 x M16
|
|
|
BSRF100-16LE
|
240 45 47
|
BSRF100-16LN
|
2404575
|
PN10/16
|
100
|
90
|
18
|
19
|
20
|
8 x M16
|
|
|
BSRF125-16LE
|
240 45 48
|
BSRF125-16LN
|
2404576
|
PN10/16
|
125
|
90
|
18
|
19
|
20
|
8 x M16
|
|
|
BSRF150-16LE
|
240 45 49
|
BSRF150-16LN
|
2404577
|
PN10/16
|
150
|
100
|
18
|
19
|
24
|
8 x M20
|
|
|
BSRF200-10LE
|
240 45 50
|
BSRF200-10LN
|
2404578
|
PN10
|
200
|
110
|
24
|
20
|
27
|
8 x M20
|
|
|
BSRF200-16LE
|
240 45 51
|
BSRF200-16LN
|
2404579
|
PN16
|
200
|
120
|
32
|
19
|
24
|
12 x M20
|
|
|
BSRF250-10LE
|
240 45 52
|
BSRF250-10LN
|
2404580
|
PN10
|
250
|
110
|
25
|
22
|
30
|
12 x M20
|
|
|
BSRF250-16LE
|
240 45 53
|
BSRF250-16LN
|
2404581
|
PN16
|
250
|
140
|
35
|
22
|
28
|
12 x M24
|
|
|
BSRF300-10LE
|
240 45 54
|
BSRF300-10LN
|
2404582
|
PN10
|
300
|
130
|
25
|
25
|
34
|
12 x M20
|
|
|
BSRF300-16LE
|
240 45 55
|
BSRF300-16LN
|
2404583
|
PN16
|
300
|
140
|
35
|
24
|
34
|
12 x M24
|
|
|
BSRF350-10LE
|
240 45 56
|
BSRF350-10LN
|
2404584
|
PN10
|
350
|
140
|
30
|
25
|
40
|
16 x M20
|
|
|
BSRF350-16LE
|
240 45 57
|
BSRF350-16LN
|
2404585
|
PN16
|
350
|
150
|
40
|
26
|
39
|
16 x M24
|
|
|
BSRF400-10LE
|
240 45 58
|
BSRF400-10LN
|
2404586
|
PN10
|
400
|
140
|
33
|
25
|
40
|
16 x M24
|
|
|
BSRF400-16LE
|
240 45 59
|
BSRF400-16LN
|
2404587
|
PN16
|
400
|
160
|
45
|
28
|
43
|
16 x M27
|
|
|
BSRF450-10LE
|
240 45 60
|
BSRF450-10LN
|
2404588
|
PN10
|
450
|
150
|
46
|
26
|
44
|
20 x M24
|
|
|
BSRF500-10LE
|
240 45 62
|
BSRF500-10LN
|
2404590
|
PN10
|
500
|
180
|
46
|
27
|
54
|
20 x M24
|
|
|
BSRF500-16LE
|
240 45 63
|
BSRF500-16LN
|
2404591
|
PN16
|
500
|
190
|
60
|
32
|
40
|
20 x M30
|
|
|
BSRF600-10LE
|
240 45 64
|
BSRF600-10LN
|
2404592
|
PN10
|
600
|
190
|
50
|
30
|
64
|
20 x M27
|
|
|
BSRF600-16LE
|
240 45 65
|
BSRF600-16LN
|
2404593
|
PN16
|
600
|
200
|
60
|
36
|
40
|
20 x M33
|
|
|
BSRF700-10LE
|
240 45 66
|
BSRF700-10LN
|
2404594
|
PN10
|
700
|
190
|
50
|
32
|
50
|
24 x M27
|
|
|
BSRF700-16LE
|
240 45 67
|
BSRF700-16LN
|
2404595
|
PN16
|
700
|
200
|
60
|
40
|
50
|
24 x M33
|
|
|
BSRF800-10LE
|
240 45 68
|
BSRF800-10LN
|
2404596
|
PN10
|
800
|
200
|
52
|
35
|
58
|
24 x M30
|
|
|
BSRF800-16LE
|
240 45 69
|
BSRF800-16LN
|
2404597
|
PN16
|
800
|
210
|
65
|
43
|
56
|
24 x M36
|
|
|
BSRF900-10LE
|
240 45 70
|
BSRF900-10LN
|
2404598
|
PN10
|
900
|
200
|
55
|
38
|
62
|
28 x M30
|
|
|
BSRF900-16LE
|
240 45 71
|
BSRF900-16LN
|
2404599
|
PN16
|
900
|
210
|
60
|
40
|
62
|
28 x M36
|
|
Standarder:
ISO 4014
DIN 931
M6S A4
Mutter behandlad med Gleitmo 627
